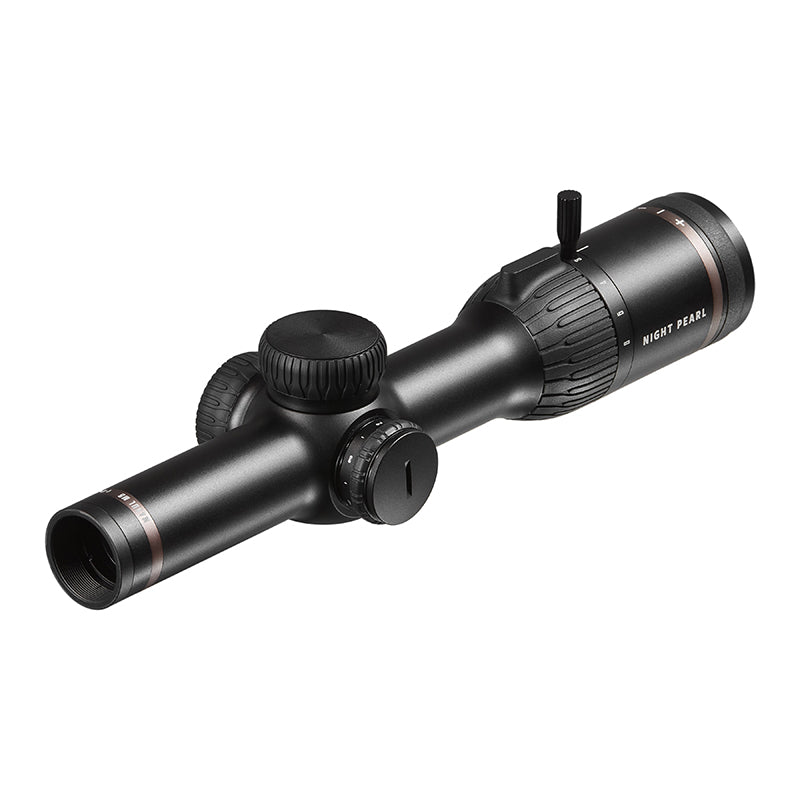

MANUL M6 1-6x24i Rifle Scope
MANUL M6 1-6x24i Rifle Scope
Couldn't load pickup availability
The MANUL M6 1-6x24i Rifle Scope is one of a range of telescopic sights that are designed to provide hunters and shooters with a quality sight for everyday use. MANUL M6 rifle scopes have a 6x optical zoom ratio and the diameter of their main tube is 30 mm. From a comprehensive range of models, shooters can choose the one that is most suitable for their use. The MANUL M6 1-6x24i Rifle Scope meets the highest standards of optical quality and mechanical precision and durability.
The reticle of the MANUL M6 1-6x24i Rifle Scope is in the second focal plane. It has an illuminated dot/cross in the center of the reticle, with 6 levels of brightness.
An additional lever for quickly changing the magnification (throw lever) is used to quickly change the magnification when using the MANUL M6 1-6x24i Rifle Scope. It can be simply screwed onto the zoom wheel and used immediately.
MANUL M6 1-6x24i |
MANUL M6 2,5-15x50i |
MANUL M6 4,5-27x56i |
MANUL M6 2-12x42i |
|
| Magnification | 1-6x | 2,5-15x | 4,5-27x | 2-12x |
| Zoom ratio | 6x | 6x | 6x | 6x |
| Tube diameter | 30 mm | 30 mm | 30 mm | 30 mm |
| Objective Ø | 24 mm | 50 mm | 56 mm | 42 mm |
| Exit pupil (mm) | 10 - 4 | 11 - 3,3 | 9,5 - 2,1 | 10,5 - 3,5 |
| Eye relief (mm) | 100 | 100 | 100 | 95 |
| Field of view (low - high) | 20,7° - 3,6° | 7,7° - 1,3° | 4,67° - 0,8° | 10,6° - 1,83° |
| Field of view m/100m (low - high) | 36,5 - 3,6 m | 13,5 - 2,3 m | 8,2 - 1,4 m | 18,6 - 3,2 |
| Focal plane | second | second | second | second |
| illuminated reticle | Yes | Yes | Yes | Yes |
| Light transmission - daylight (%) | 92 | 92 | 92 | 91 |
| Light transmission - twilight (%) | 88 | 88 | 88 | 88 |
| Dioptric correction (dpt) | + 3,5 / -2 | + 3,5 / -2 | + 3,5 / -2 | + 3 / -3 |
| W/E adjustment range | 120 MOA | 84 MOA | 24 MIL | Elevation 110 Windage 80 |
| Impact per click | 0,5 MOA | 0,25 MOA | 0,1 MIL | 0,25 MOA |
| Impact per click (cm/100m) | 1,45 | 0,7 | 1 | 0,7 |
| Length, weight | 258 mm, 533 g | 359 mm, 738 g | 392 mm, 1036 g | 305,5 mm, 605g |
| Parallax correction | no | 10m - infinity | 25m - infinity | 10m - infinity |
| Operating temperature | –25 °C to +55 °C | –25 °C to +55 °C | –25 °C to +55 °C | –25 °C to +55 °C |
| Recoil resistance | 600g (up to .338) | 600g (up to .338) | 600g (up to .338) | 600g (up to .338) |
| Water resistance | 2m / 2hod | 2m / 2hod | 2m / 2hod | 2m / 2hod |
| Warranty | 5 years (register 10 years) | 5 years (register 10 years) | 5 years (register 10 years) | 5 years (register 10 years) |
